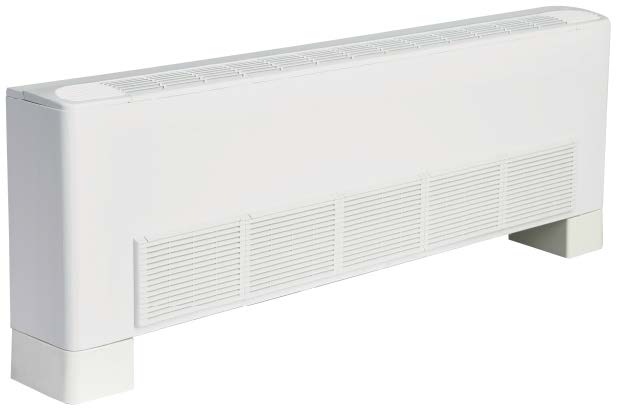

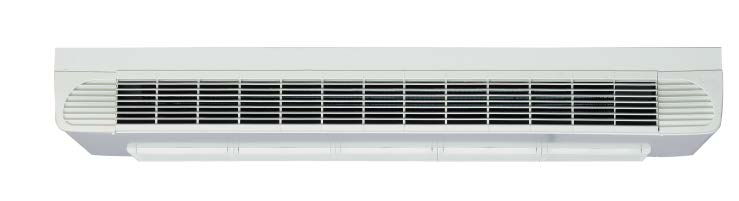

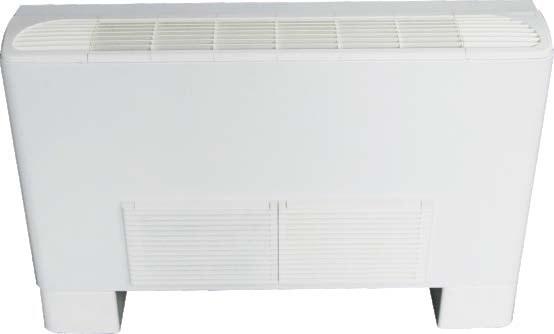

        Universal FCU

        Water pipe connection direction
        L: Left pipe connection(facing the air outlet)
        R: Right pipe connection(facing the air outlet)

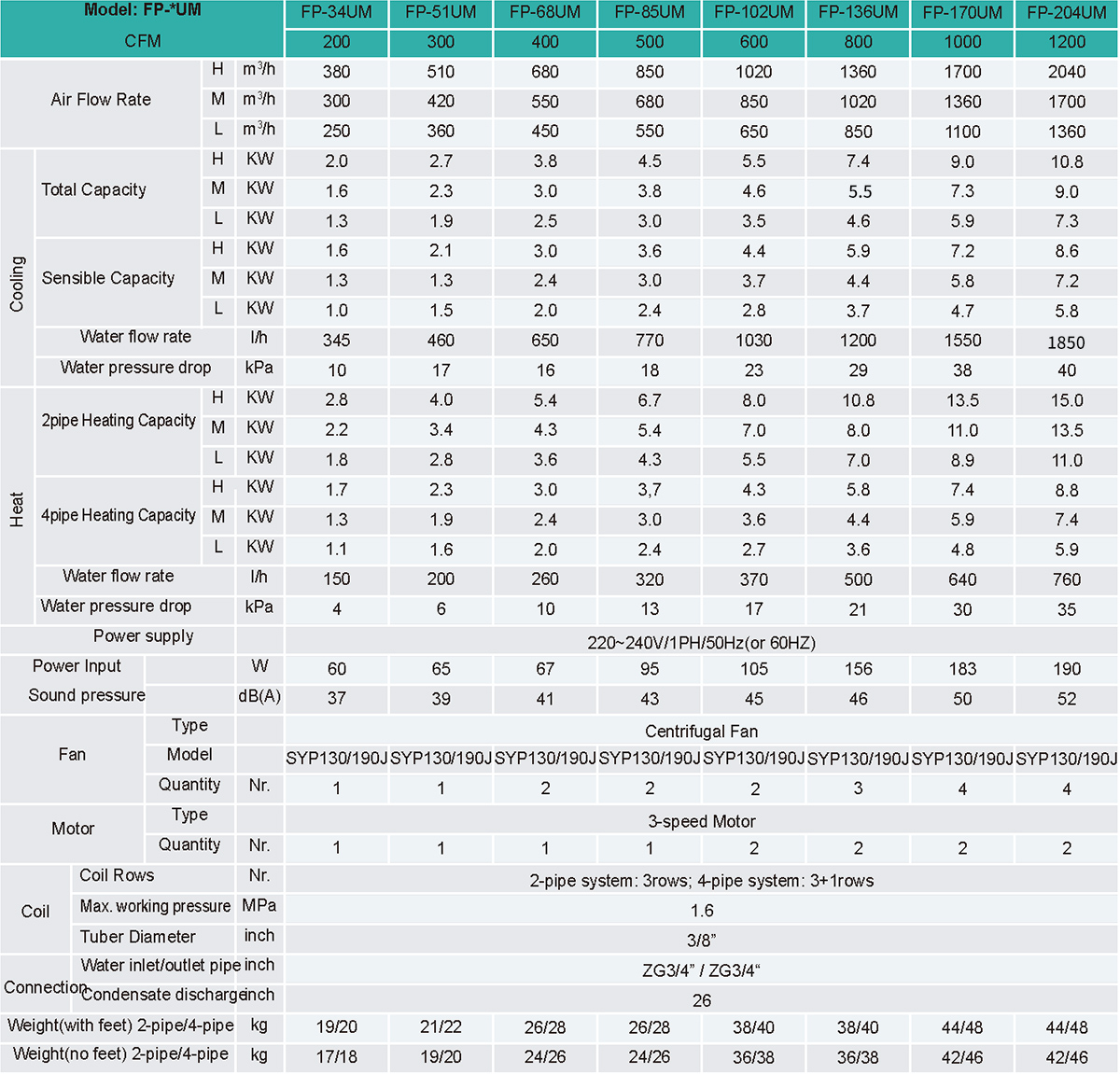

        Advantagestechnical parameter

        Centrifugal Fan
        Well-known brand centrifugal fans, with galvanized steel and which is statically and dynamically balanced.

        Condensate Drain Pan
        L shaped drain pan, suitable for horizontal and/or vertical installation.

        High Efficiency Coil
        Coil are made of copper tubes and high exchange surface area aluminum blue fins. All coils are 100% tested against leaks by 16bar,1.6Mpa air pressure. with 3/4”pipe connections and air bleed vent.
